Self-erecting

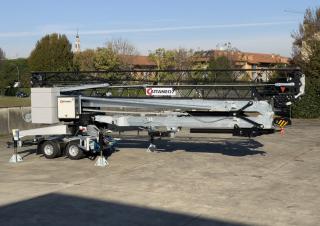

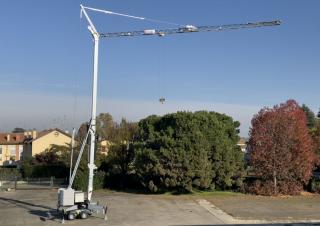

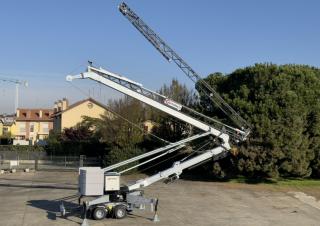

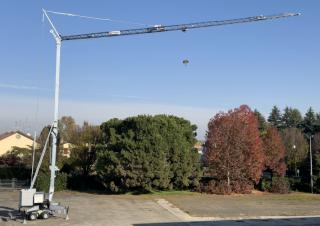

Cattaneo CM 301 crane - load chart, specs & dimensions (2025 - 2026)
| Max. load | 2.5 t |
| Hoist unit | 7.5 kW |
| Max. reach | 30 m |
| Drive system | E |
| Model series | CM |
| Connection load | 12 KVA |
The Cattaneo Cattaneo CM 301 crane - load chart, specs & dimensions (2025 - 2026) is a specialized Self-erecting from the Tower Cranes segment, designed to deliver exceptional lifting capacity and stability in complex industrial environments. As a proven model in the Cattaneo fleet, it is built to endure the most demanding professional tasks with minimal maintenance. This equipment remains a top choice for operators who prioritize a perfect balance between operational power and cost-efficiency.
Technical Specifications
Detailed paramaters for Cattaneo CM 301 crane - load chart, specs & dimensions (2025 - 2026)
| Max. load | 2.5 t |
| Hoist unit | 7.5 kW |
| Max. reach | 30 m |
| Drive system | E |
| Model series | CM |
| Connection load | 12 KVA |
| Max. hook height | 32.4 m |
| Load at max. Reach | 6 t |
| Reach at max. Load | 9.7 m |
| Max. standard boom | 30 m |
| Max. hoisting speed | 40 m/min |
