Articulating Boom Lifts
Dino 220 XTC II Dino Lift Crawler Articulating Boom Lifts
| Engine power | 17 kW |
| Weight | 3060 kg |
| Persons | 2 |
| Net load | 215 kg |
| Rotation | 180 ° |
| Engine type | k.A. |
Optimized for safe aerial access, the Dino Lift Dino 220 XTC II Dino Lift Crawler Articulating Boom Lifts is a versatile Articulating Boom Lifts solution for the Aerial Work Platforms industry, offering superior reach and maneuverability. As a proven model in the Dino Lift fleet, it is built to endure the most demanding professional tasks with minimal maintenance. This equipment remains a top choice for operators who prioritize a perfect balance between operational power and cost-efficiency.
Technical Specifications
Detailed paramaters for Dino 220 XTC II Dino Lift Crawler Articulating Boom Lifts
| Weight | 3060 kg |
| Persons | 2 |
| Net load | 215 kg |
| Rotation | 180 ° |
| Engine type | k.A. |
| Displacement | 0.9 l |
| Engine power | 17 kW |
| Model series | Dino |
| Travel speed | 1.4 km/h |
| Engine manuf. | Kubota |
| Emission level | IIIA |
| Platform width | 0.7 m |
| Working height | 22.1 m |
| Platform length | 1.3 m |
| Transport width | 1.4 m |
| No. of cylinders | 3 |
| Transport height | 2 m |
| Transport length | 6.3 m |
| Brace support width | 3.54 m |
| Brace support length | 3.95 m |
| Max. Reach horizontal | 11 m |
| Max. climbing ability | 43 % |
Comparable Models

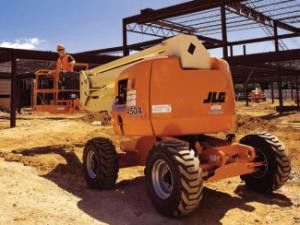

JLG 450A Serie II Wheeled Articulating Boom Lifts (2013 - 2020) Specifications & Dimensions
JLG

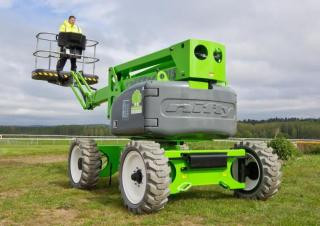

Niftylift HR15D Wheeled Articulating Boom Lifts (2017 - 2026) Specifications & Dimensions
Niftylift

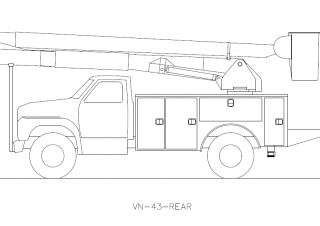

Versalift VN-43-I-REAR Trailer Mounted Articulating Boom Lifts (2025 - 2026) Specifications & Dimensions
