Zoomlion ZA26J Wheeled Articulating Boom Lifts (2024 - 2026) Specifications & Dimensions
| Engine power | 54.6 kW |
| Weight | 18800 kg |
| Net load | 250 kg |
| Rotation | 360 ° |
| Engine type | V3307 |
| Displacement | 3.31 l |
The Zoomlion Zoomlion ZA26J Wheeled Articulating Boom Lifts (2024 - 2026) Specifications & Dimensions is a high-performance model engineered for precision and reliability. As a proven model in the Zoomlion fleet, it is built to endure the most demanding professional tasks with minimal maintenance. This equipment remains a top choice for operators who prioritize a perfect balance between operational power and cost-efficiency.
Technical Specifications
Detailed paramaters for Zoomlion ZA26J Wheeled Articulating Boom Lifts (2024 - 2026) Specifications & Dimensions
| Weight | 18800 kg |
| Net load | 250 kg |
| Rotation | 360 ° |
| Engine type | V3307 |
| Displacement | 3.31 l |
| Engine power | 54.6 kW |
| Model series | J |
| Power source | D |
| Travel speed | 5 km/h |
| Engine manuf. | Kubota |
| Emission level | EU V / EPA Tier 4f |
| Platform width | 0.91 m |
| Working height | 28.2 m |
| Platform length | 2.44 m |
| Transport width | 2.49 m |
| No. of cylinders | 4 |
| Transport height | 2.82 m |
| Transport length | 11.75 m |
| Max. Reach horizontal | 19.4 m |
| Max. climbing ability | 45 % |
| Turning radius outside | 6.48 m |
| Revolutions at max torque | 2400 rpm |
Comparable Models
Wilbert WT 200 e.tronic crane - load chart, specs & dimensions (2003 - 2019)
Wilbert

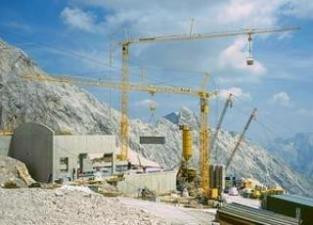

Liebherr 71 K-2,9m crane - load chart, specs & dimensions (1998 - 2010)
Liebherr
Liebherr 120 KR.1 (FU) crane - load chart, specs & dimensions (2011 - 2017)
Liebherr

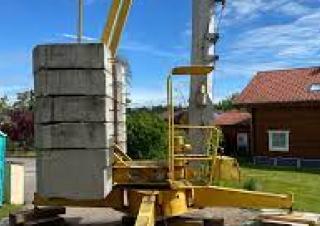

Potain HD 21 A-1,9 m crane - load chart, specs & dimensions (1991 - 1994)
